How to Calculate the Cost of Injection Molds: A Comprehensive Guide

2023-03-31


Injection molding is a widely used manufacturing process that involves injecting molten material (usually plastic) into a mold cavity to produce a desired shape. This process is popular for producing high volumes of identical parts, given its efficiency and cost-effectiveness. However, determining the cost of injection molds can be a complex task, as it involves various factors that need careful consideration. In this blog post, we'll dive into the key factors that influence the cost of injection molds and provide you with a step-by-step guide to estimating it accurately.




Key Factors Influencing Injection Mold Cost

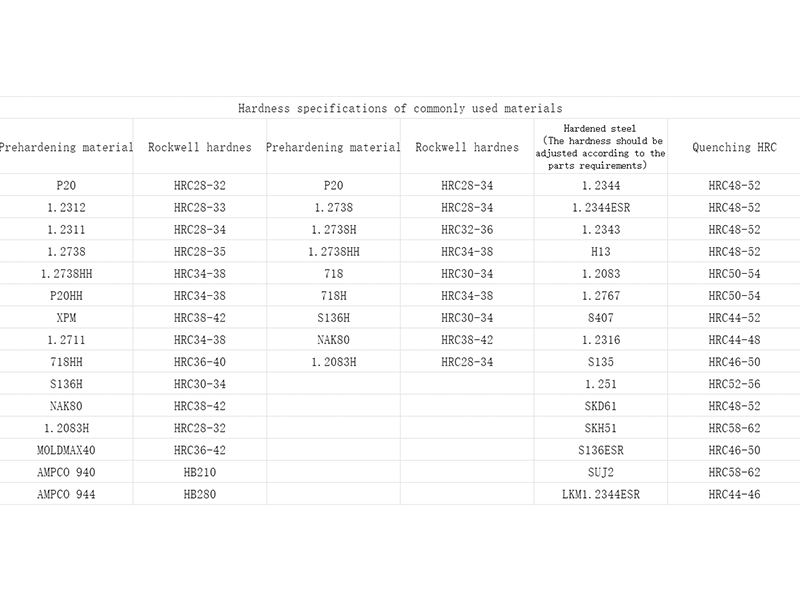

  • Mold material: The type of material used for the mold will significantly impact the overall cost. Common mold materials include steel, aluminum, and beryllium-copper alloys. Steel molds are more expensive but offer longer lifespans, while aluminum molds are more cost-effective for low-volume production.





  • Part complexity: The intricacy of the part's design, including the number of undercuts, cavities, and the need for side-actions, will affect the mold's price. More complex designs require additional engineering and machining work, resulting in higher costs.





Complex design partSimple design part



  • Mold size: The size of the mold directly correlates to the price, as larger molds require more material and machining time.





Large automotive moldSmall part mold

  • Cavity count: The number of cavities in the mold also influences the cost. Multi-cavity molds produce more parts per cycle, reducing production time and costs. However, the initial investment for multi-cavity molds is higher due to increased material and machining requirements.




  • Surface finish: The desired surface finish of the final part, such as matte or polished, affects the price. A higher-quality finish necessitates additional polishing and finishing work, increasing the mold's cost.





EDM texture on moldTexture treatment



  • Mold longevity: The expected lifespan of the mold, measured in the number of shots (cycles), impacts the overall cost. Molds with longer lifespans require higher-quality materials and tighter manufacturing tolerances, which come at a premium.



Step-by-Step Guide to Estimating Injection Mold Cost



  • Determine the mold material: Analyze your project's requirements, such as the desired production volume and part complexity, to choose the most suitable mold material.




  • Estimate mold size: Calculate the mold size based on the part's dimensions, including length, width, and depth. This estimation will help you determine the amount of material needed and the machining time.




  • Calculate part complexity: Assess the intricacy of the part's design and identify any features that may require additional engineering or machining effort.




  • Decide on cavity count: Determine the optimal number of cavities for your project, considering factors such as production volume, part complexity, and budget constraints.




  • Select surface finish: Choose the desired surface finish for your final part and factor in the additional polishing and finishing work that may be required.




  • Determine mold longevity: Estimate the expected lifespan of the mold based on your project's production requirements and the mold material's durability.




  • Get quotes from mold manufacturers: Reach out to multiple mold manufacturers with your project specifications to obtain accurate quotes. This step allows you to compare prices and select the best option that meets your budget and quality requirements.





  • Factor in additional costs: Don't forget to consider any additional costs that may arise, such as shipping, mold modifications, or post-processing operations.




Conclusion

By following these steps and carefully considering each factor, you can accurately estimate the cost of your injection molds. This knowledge will help you make informed decisions regarding your project's budget and ensure a successful, cost-effective manufacturing process.
