Plastic products are ubiquitous in our daily life. From plastic bottles to electronic device casing, from food packaging to auto parts, plastic products have become an integral part of our lives.  In the production process of plastic products, vacuum forming technology plays a vital role. This article will give you an in-depth understanding of what vacuum forming is, how it works and how it is used in plastic processing.

What is vacuum forming?

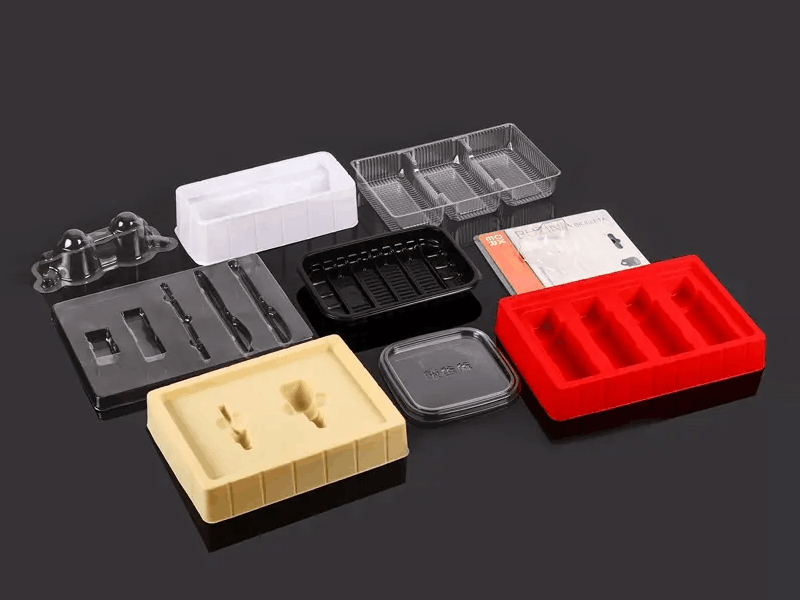

Vacuum forming is a process used to create plastic parts by heating a flat sheet of plastic material until it becomes pliable, and then forming it into a specific shape using a vacuum to suck the air out between the sheet and the mold. This process is commonly used in the manufacturing industry to create a wide variety of plastic products, from simple packaging to complex components for medical, automotive, aerospace, and even consumer goods.

How vacuum forming works?

Material Preparation: First, a suitable plastic material is selected. Typically, thermoplastic sheets, such as ABS, PS, PVC, or PETG, are used. These sheets are available in various thicknesses and can be pre-cut to the desired size.

Heating the Plastic Sheet: The selected plastic sheet is heated until it reaches its softening temperature. The heating process makes the plastic sheet more pliable and malleable for shaping.

Placing the Plastic Sheet over the Mold: Once the plastic sheet reaches the appropriate temperature, it is quickly removed from the heating source and placed over the mold.

Creating the Vacuum: The plastic sheet and mold assembly is placed in a vacuum forming machine. The chamber is sealed, and air is removed from the chamber, creating a vacuum environment.

Forming the Plastic: As the vacuum is applied, the atmospheric pressure outside the plastic sheet pushes it against the mold surface. The heated and softened plastic conforms to the shape of the mold, taking on its contours and details.

Cooling and Solidification: After the plastic sheet has conformed to the mold, it is cooled to quickly solidify and maintain its shape. The cooling process sets the plastic in its formed shape, allowing it to retain its structure and stability.

Removing the Finished Product: The formed plastic product is carefully removed from the mold, resulting in a finished vacuum-formed product with the desired shape and dimensions.

Engineering Design	Tooling Manufacture	Samples Discussion	Plastic Sheet Manufacture
Vacuum Forming	CNC Cutting	Prototype	Silk Printing
Painting	Metalized	Quality Checking	Package

Materials for Vacuum Forming

Each material has its own properties and characteristics that make it suitable for different applications. Here are some commonly used materials in vacuum forming:

Polystyrene (PS): This is a hard, rigid material that's easy to vacuum form. It's often used in packaging for consumer products, food service trays, and point-of-purchase displays. Acrylonitrile Butadiene Styrene (ABS): ABS is a very tough, impact-resistant material that's often used in vacuum forming for creating durable items such as automotive parts, protective equipment, and toys. Polyvinyl Chloride (PVC): PVC is a flexible or rigid material that's resistant to chemicals and fire, making it suitable for applications like blister packaging, clamshell packaging, and other types of protective packaging. Polyethylene Terephthalate (PET): PET is a clear, strong and lightweight plastic that's often used in vacuum forming for packaging applications. It's also used for making drinking bottles and other food-related products due to its food-safe properties. Polycarbonate (PC): PC is a clear, strong material that's often used in vacuum forming for applications that require transparency, like face shields and other protective equipment. Polypropylene (PP): PP is a tough, flexible material that's resistant to many chemicals, making it a good choice for containers, packaging, and components that need to withstand wear and tear.

The Benefits of Vacuum Forming

Vacuum forming is a commonly used plastic processing technology, which has the advantages of high cost-effectiveness, short production cycle, large design freedom and strong adaptability, making it one of the commonly used plastic molding methods in many industries.

1. Cost-Effective

The tooling costs for vacuum forming are typically much lower than for other methods such as injection or blow molding, especially for smaller production runs. This makes it a very accessible technology for businesses of all sizes.

2. Rapid Prototyping

The vacuum forming process is relatively quick, making it an excellent choice for prototyping and low-to-medium volume production. It allows for rapid development and testing of new designs without the time and cost associated with other molding processes.

3. Design Flexibility

Vacuum forming offers a high level of design flexibility. It can be used to create large and intricate parts with ease. The parts can be made in a wide range of shapes, sizes, and finishes, and it's relatively simple to make design changes or customize the parts.

4. Speed

Vacuum forming is a relatively quick process that can produce parts faster than some other forms of plastic molding, especially for simple designs.

5. Lightweight and Durable Parts

The parts produced through vacuum forming are generally lightweight yet durable. This makes vacuum-formed parts suitable for a range of industries, from packaging to automotive and aerospace.

6. High-Quality Finish

Parts created through vacuum forming often require minimal finishing work, as the process can result in parts with a smooth surface and excellent detailing. The resulting products can also easily be colored, printed, or textured during the forming process.

Application For Vacuum Forming

Vacuum forming is a widely used plastic processing technique with applications in various industries. Here are some common applications of vacuum forming:

Cosmetic	Electronic	Food
Hardware	Household	Medical
