Introduction to Injection Molding

Injection molding is a popular manufacturing process that involves producing plastic parts by injecting molten material into a mold. This technique is widely used in various industries, including automotive, medical, consumer goods, and more, due to its ability to create complex and high-quality parts with minimal waste.

The Importance of Injection Molding Components

To create a successful injection-molded part, it's important to understand the different components of the injection molding process. Two critical components of this process are the sprue and the runner, which play a crucial role in directing the flow of the molten material and ensuring the quality of the final product.

The Sprue

Definition and function

The sprue is the primary channel through which the molten plastic material enters the mold. It connects the injection molding machine's nozzle to the runner system and is responsible for transferring the material from the machine to the mold cavity.

Key features

Typically, the sprue has a conical shape with a wider diameter at the nozzle end and a narrower diameter at the runner end.

The design of the sprue helps to minimize pressure loss and reduce the risk of material solidification before it reaches the mold cavity.

Common issues and solutions

If the sprue is too small, it may lead to an increased pressure drop, causing the material to cool and solidify prematurely.

If the sprue is too large, it can increase the cycle time and material waste.

To avoid these issues, it's essential to optimize the sprue design based on the material, part design, and processing parameters.

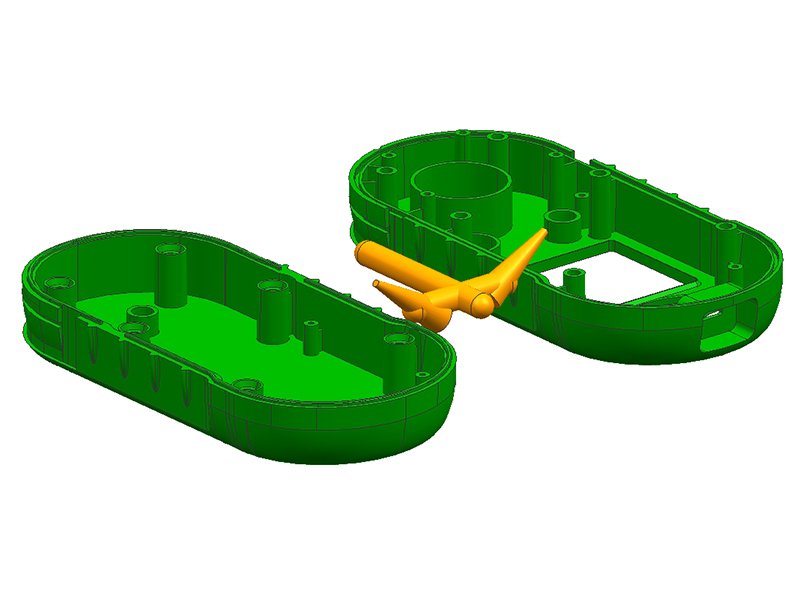

The Runner

Definition and function

The runner is a network of channels within the mold that directs the molten material from the sprue to the mold cavities. It ensures that the material is distributed evenly and consistently throughout the mold.

Types of runners

There are two main types of runners: cold runners and hot runners.

Cold runners are simple and cost-effective, but they require manual removal of the solidified runner material after each molding cycle.

Hot runners use heated components to keep the material molten within the runner system, reducing waste and increasing efficiency.

Key features

The runner's design, including its shape, size, and layout, has a significant impact on the quality and consistency of the molded parts.

Proper runner balancing ensures equal filling of multiple cavities and minimizes defects like warping, sink marks, and short shots.

Common issues and solutions

Incorrect runner design can lead to material waste, increased cycle time, and part defects.

To optimize the runner system, designers should consider factors like material properties, part geometry, and processing conditions.

Comparing Sprue and Runner

Similarities

Both the sprue and the runner are essential components of the injection molding process that help transport the molten material into the mold.

Both components impact the quality, efficiency, and cost-effectiveness of the molding process.

Differences

The sprue is the primary channel connecting the injection molding machine to the mold, while the runner is a network of channels within the mold that distributes the material to the cavities.

The sprue has a conical shape, while runners can have various shapes and layouts depending on the mold design.

Optimization Tips for Sprue and Runner Systems

1. Properly size the sprue and runner channels to minimize pressure drop and material waste.

2. Consider the material properties, part design, and processing parameters when designing the sprue and runner system.

3. Option for a hot runner system when looking to increase efficiency and reduce waste.

4. Balance the runner system to ensure equal filling of multiple cavities and minimize part defects.

Conclusion

Understanding the differences between the sprue and runner in injection molding is essential for optimizing the molding process and ensuring high-quality parts. By carefully designing and balancing the sprue and runner system, manufacturers can improve efficiency, reduce waste, and minimize part defects.

FAQs

1. How do sprue and runner affect the quality of injection molding parts?

A. Part appearance: If the sprue and runner system is poorly designed, it can leave visible marks on the part, which can affect its appearance.

B. Dimensional accuracy: The sprue and runner can affect the fill rate and pressure in the mold, which can affect the dimensional accuracy of the part.

C. Warpage: A poorly designed sprue and runner system can lead to differential cooling of the part, which can cause warpage.

D. Material waste: A poorly designed sprue and runner system can lead to excessive material waste, which can increase the cost of production.

E. Cycle time: A well-designed sprue and runner system can reduce cycle time, which can increase production efficiency and reduce costs.

2. Can adjusting the size of sprue and runner improve the efficiency of injection molding?

Yes, adjusting the size of sprue and runner can improve the efficiency of injection molding in several ways:

A. Reducing material waste: By optimizing the size of sprue and runner, the amount of material wasted during injection molding can be minimized, which can lead to significant cost savings.

B. Enhancing product quality: Properly sized sprue and runner can ensure more consistent flow of material through the mold, resulting in better product quality and fewer defects.

C. Improving cycle time: If the size of the sprue and runner is too large or too small, it can affect the filling and cooling of the mold, which can lengthen cycle time. By adjusting the size of the sprue and runner, the cycle time can be optimized, leading to an overall improvement in efficiency.

D. Increasing productivity: By reducing material waste, improving product quality, and optimizing cycle time, adjusting the size of sprue and runner can increase productivity, allowing for more parts to be produced in a given amount of time.

3. Are there any common mistakes that one should avoid when designing or using sprue and runner systems in injection molding?

Yes, there are several common mistakes that one should avoid when designing or using sprue and runner systems in injection molding. These include:

A. Improper gate location: The gate location should be carefully selected to avoid trapping air and to ensure that the plastic flows evenly into the mold cavity. Improper gate location can lead to air pockets, flash, and other defects in the molded part.

B. Uneven runner system: The runner system should be designed to balance the flow of plastic to each part of the mold cavity. An uneven runner system can lead to uneven filling, resulting in defects in the molded part.

C. Incorrect sprue size: The sprue size should be optimized to ensure that the plastic flows smoothly into the runner system. An incorrect sprue size can lead to turbulence and air pockets, resulting in defects in the molded part.

D. Incorrect injection speed and pressure: The injection speed and pressure should be optimized to ensure that the plastic flows smoothly and evenly into the mold cavity. Incorrect injection speed and pressure can lead to turbulence, air pockets, and other defects in the molded part.

E. Lack of venting: Venting can be added to the mold to allow air to escape during the injection molding process. A lack of venting can lead to air pockets and other defects in the molded part.

F. Poor maintenance: Regular maintenance of the sprue and runner system is essential to ensure that it is functioning correctly. Poor maintenance can lead to clogging, uneven filling, and other defects in the molded part.

By avoiding these common mistakes, you can optimize your sprue and runner system and produce high-quality molded parts. It's always best to consult with an experienced injection molding engineer for guidance on designing and using sprue and runner systems.
