Introduction

Manufacturers rely on various manufacturing processes to create parts and products. Two popular processes are die casting and injection molding. These processes offer benefits such as speed, precision, and high-volume production. However, there are significant differences between the two processes that make them suitable for different applications.

In this blog, we will explore the differences between die casting and injection molding. We will begin by defining each process and describing how it works. Then, we will compare the two processes based on several factors, including cost, material selection, surface finish, and part complexity. Finally, we will provide some guidance on which process might be the best fit for different manufacturing applications.

What is Die Casting?

Die casting is a metal casting process that involves forcing molten metal into a mold cavity using high pressure. The mold cavity is created using two hardened steel dies that are machined with the desired shape of the part. Once the mold cavity is created, the dies are clamped together, and molten metal is injected into the cavity at high pressure. The metal quickly solidifies and the dies are opened to remove the part.

There are two types of die casting: hot chamber die casting and cold chamber die casting. Hot chamber die casting is used for alloys with low melting points, such as zinc, magnesium, and copper. In this process, the injection system is immersed in a pool of molten metal. When the plunger is activated, the molten metal is forced into the mold cavity. Cold chamber die casting is used for alloys with high melting points, such as aluminum and brass. In this process, the molten metal is poured into a cold chamber and then injected into the mold cavity.

Die casting is ideal for producing parts with complex shapes and thin walls. The process offers high production rates and excellent dimensional accuracy. It is commonly used in the automotive, aerospace, and electronics industries to produce parts such as engine blocks, transmission housings, and computer components.

What is Injection Molding?

Injection molding is a manufacturing process for producing parts by injecting molten material into a mold.  The molten material is typically thermoplastic or thermosetting polymers, and the process is used to produce a wide range of products, from small components to large automotive parts.

The injection molding process begins with the creation of a mold cavity. The mold is typically made of steel or aluminum and is designed to create the desired shape of the part. Once the mold is created, the molten material is injected into the mold cavity at high pressure. The material then cools and solidifies, and the mold is opened to remove the part.

Injection molding is suitable for producing parts with complex geometries, tight tolerances, and smooth finishes. The process is highly repeatable and offers high production rates. It is commonly used in the automotive, medical, and consumer goods industries to produce parts such as automotive components, medical devices, and consumer electronics.

Difference of Injection Molding and Die Casting

There are several key differences between injection molding and die casting. These differences include:

Materials

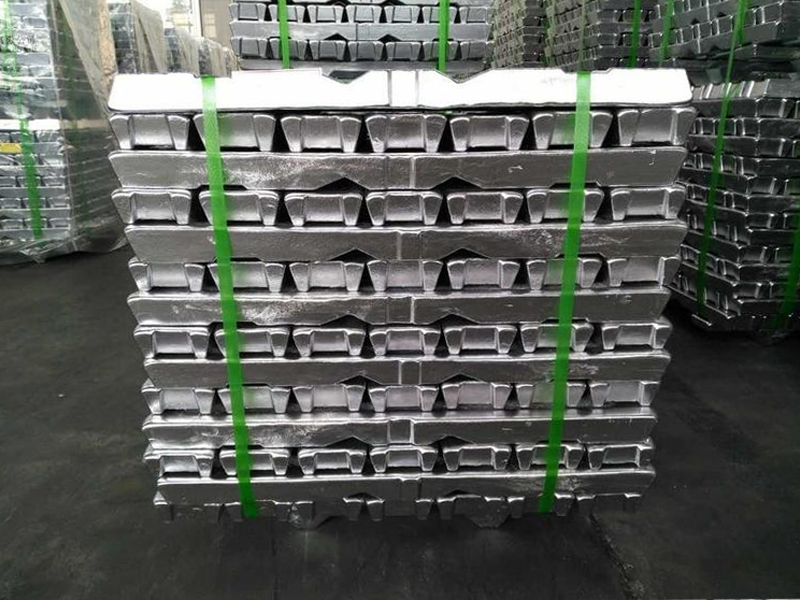

One of the most significant differences between die casting and injection molding is the materials used in the manufacturing process. Die casting is typically used to produce metal parts, such as aluminum, zinc, or magnesium, while injection molding is used to produce plastic parts or other non-metallic materials.

Process

Another significant difference between the two processes is the way in which the materials are injected into the mold.

In die casting, the molten metal is injected under high pressure into the die, which is typically made of two halves. The mold is then held together until the metal has solidified and cooled, at which point the mold is opened, and the finished product is ejected.

In injection molding, the molten plastic is injected into the mold using a screw-type injection molding machine, which ensures that the plastic is evenly distributed throughout the mold. The mold is then held closed until the plastic has cooled and solidified, at which point the mold is opened, and the finished product is ejected.

Surface Finish

The surface finish of the final product is also different between the two processes. Die casting produces parts with a smooth, polished surface finish, while injection molding can produce parts with a variety of surface finishes, ranging from matte to glossy.

Tolerance

The tolerance level of the finished product is another difference between die casting and injection molding. Die casting produces parts with a higher level of accuracy and precision than injection molding. This is because die casting uses high pressure to inject the molten metal into the die, which ensures that the final product has a precise shape and size.

Injection molding, on the other hand, can produce parts with a lower level of accuracy and precision. This is because the plastic can shrink as it cools, which can cause the final product to be slightly smaller than the mold.

Cost

Die casting is typically more expensive than injection molding because it requires more complex tooling. The dies used in die casting are made of hardened steel and must be machined to the exact shape of the part. This process is time-consuming and expensive. Additionally, die casting requires more material than injection molding because the parts must be thicker to withstand the high pressure used in the process.

Injection molding, on the other hand, has lower tooling costs because the molds are typically made of aluminum or steel and can be machined more quickly. Additionally, injection molding requires less material because the parts can be made thinner than die casting parts.

Part size and complexity

Injection molding is generally better suited for producing small to medium-sized parts with complex geometries, while die casting is better suited for producing larger parts with simpler geometries. This is because the high pressures required for die casting can cause problems with the flow of molten metal in complex mold cavities.

Conclusion

In summary, die casting and injection molding are both highly effective manufacturing techniques used to produce complex parts with high accuracy and efficiency. The choice between the two techniques depends on several factors, such as the material used, the complexity of the part, the required accuracy, and the production volume. Both techniques have their unique advantages and disadvantages, and manufacturers must carefully consider these factors when selecting the best technique for their specific needs.
