Injection Molding Design Guidelines

1. Introduction

Injection molding is a widely used manufacturing process for producing plastic parts with high precision and efficiency. To ensure successful and cost-effective production, it is crucial to follow proper design guidelines for injection molding. In this blog, we will explore the key considerations and guidelines that designers should keep in mind when designing parts for injection molding.

2. Understanding Injection Molding Process

A. Overview of Injection Molding

Injection molding is a widely used manufacturing method due to its versatility, speed, and accuracy. It can produce complex geometries and intricate details with minimal material waste. The process is suitable for a broad range of materials, including thermoplastics, thermosets, and even some metals.

B. Key Components of Injection Molding Machine

An injection molding machine comprises several key components, such as the clamp unit, injection unit, control system, and heating and cooling systems. The clamp unit holds the mold in place and applies pressure to keep it closed during the injection and cooling phases. The injection unit is responsible for melting the plastic and injecting it into the mold cavity.

C. Basic Steps in Injection Molding Process

The injection molding process typically involves several steps, including clamping, injection, cooling, ejection, and mold opening. These steps are repeated for each cycle, resulting in the production of a large number of identical parts.

3. Design Guidelines for Injection Molding

To ensure successful injection molding production, it is essential to follow certain design guidelines. These guidelines help optimize the part design for manufacturability, reduce defects, and improve overall production efficiency. Let's explore some key design guidelines for injection molding:

A. Wall Thickness: Maintaining uniform wall thickness is crucial to prevent warping, sink marks, and other defects. The recommended wall thickness range typically falls between 0.5mm and 3mm, depending on the material and part requirements. Avoiding thin and thick wall sections is important to ensure consistent cooling and reduce stress concentrations.

B. Draft Angle: Draft angles facilitate easier ejection of the molded part from the mold cavity. Typical draft angles range from 0.5° to 2°, and their application depends on factors like material type, wall thickness, and texture requirements. Considerations for draft angle placement include minimizing visible impact on part aesthetics and ensuring uniformity to avoid warping.

C. Ribs and Bosses: Ribs provide structural support without adding significant weight, while bosses are used to mount components or fastenings. Design guidelines for ribs include limiting their height, adding fillets to stress concentrations, and maintaining uniform wall thickness transition. Effective boss design considers factors like boss height, diameter, and location to ensure adequate strength and minimize material stress.

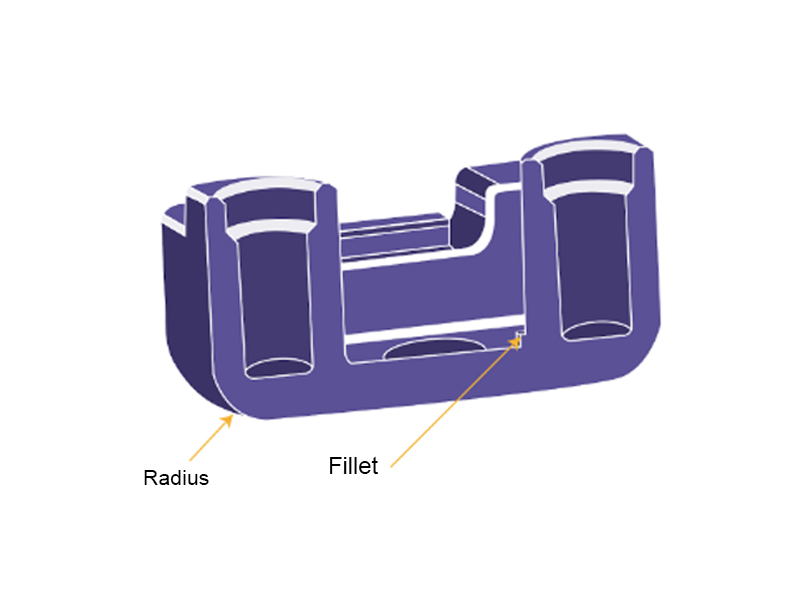

D. Fillets and Corner Radii: Fillets and corner radii help distribute stress evenly, reducing the likelihood of cracks or fractures. Recommended sizes for fillets and corner radii depend on the wall thickness and material properties. Benefits of radiused corners include improved strength, easier mold flow, and reduced stress concentrations.

E. Gate Position: Proper gate position ensures efficient molten plastic flow into the mold cavity, minimizing turbulence and air entrapment. Gate locations should be strategically chosen to promote balanced filling, reduce sink marks, and minimize visible gate marks on the final part. Gate design considerations include gate type, size, and orientation relative to part features.

F. Undercuts and Side Actions: Undercuts are features that prevent the part from being ejected straight out of the mold. Design strategies for undercuts involve creating slides or lifters to allow for part removal. Side actions, such as cam mechanisms or旋转cores, can also be incorporated into the mold design to facilitate complex part geometries and undercuts.

G. Parting Lines and Ejection: Parting lines are visible lines on the final product where the mold halves meet. Determining optimal parting lines requires considering factors like part aesthetics, functionality, and ease of mold assembly. Ejection methods, such as ejector pins or air ejection, should be carefully selected and positioned to avoid damage to the part during ejection.

H. Surface Finish and Texture: Achieving the desired surface finish and texture is critical for part aesthetics and functionality. Surface finish requirements depend on the application, with some parts requiring a smooth, polished finish while others may need a textured surface for improved grip or appearance. Texture selection should consider factors like texture depth, pattern, and directionality to complement the part design and meet functional requirements.

4. Design for Manufacturability (DFM)

A. Collaborating with Molders and Toolmakers

Engage molders/toolmakers early in design process before tool production.

Understand their capabilities and limitations to avoid issues down the road.

Incorporate process and material experts' feedback into design revisions.

B. Prototyping and Testing

Rapidly test designs using 3D printing or machined prototypes.

Evaluate fill patterns, strengths, dimensional stability with sample parts.

Refine designs based on what's easy/difficult to mold.

Simulate productions processes to catch issues early.

C. Iterative Design Process

DFM involves continual evaluation and optimization.

Make small, incremental changes verified through prototyping.

Multiple design-test cycles lead to robust, manufacturable parts.

Collaborate cross-functionally to resolve problems at design stage.

D. Design Validation and Optimization

Establish tolerance standards and test plans for validation.

Conduct final molding trials with production intent materials.

Collect process data and finished part metrics.

Quantitatively measure how designs meet engineering targets.

Further enhance designs based on test results and production experience.

5. Conclusion

Designing parts for injection molding requires careful consideration of various factors to ensure successful production and high-quality end products. By following the design guidelines outlined in this blog, designers can optimize their designs for the injection molding process, minimize manufacturing issues, and achieve cost-effective production. Collaboration with experienced injection mold maker and Alpine mold, along with proper prototyping and testing, will further enhance the design process and lead to improved manufacturability. Remember, a well-designed part is the foundation for a successful injection molding process.
